FCD.3-758 Smart Toilet Solenoid Valve FCD.3-758 Description

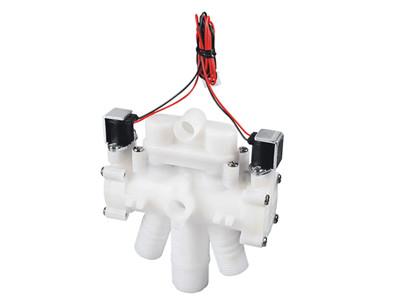

Smart Toilet Solenoid Valve FCD.3-758

PRODUCT DESCRIPTION

Spec.: FCD.3-758

Type: Smart Sanitary Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the "model meaning".

2. If the user has special needs, please specify when ordering.

Application:

Smart Sanitary Solenoid Valve is mainly used in intelligent bathroom, intelligent toilet,smart bidet,intelligent urinal and so on. At present, we usually supply these solenoid valves to intelligent toilet manufacturers from home and abroad.

Advantage:

The flow rate of the smart sanitary solenoid valve is large.

The starting performance of the smart sanitary solenoid valve is stable.

The performance of anti flow backwards of this solenoid valve is good.

The structure design of this solenoid valve is simple and easy for customer installation.

It would be better if choose pulse valve for it.

The power supply of this solenoid valve can adopt 4 sections 5# dry battery.

It is easy control when customer adopt this type AC/DC solenoid valve.

Specification:

Model：

FCD.3-758

Rated voltage:

Pulse 4.5V/ Pulse 6V/DC9V/DC12V/DC24V

Working pressure：

0.05～0.8Mpa

Inlet：

G3/4”male thread

Medium temperature:

0～50℃

Outlet：

G1/2”male thread

Install spacing：

60mm

Water pressure:

0.05Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥15L/min

≥25L/min

≥35L/min

≥55L/min
