HYDC Stainless steel no leakage magnetic drive submersible pump Description

Double shell isolation liquid chlorine magnetic pump, explosion-proof and leak free vertical cylindrical double-layer isolation liquid chlorine pump

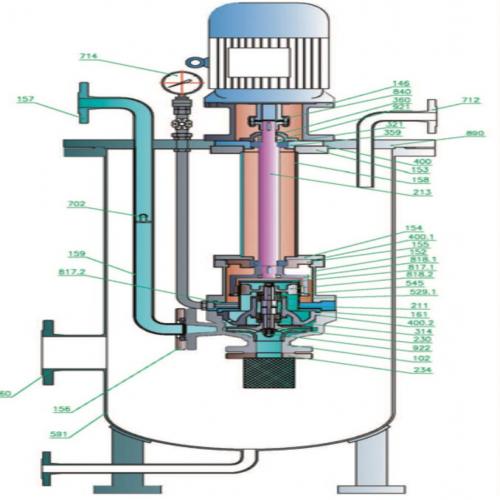

HYDC no-leak magnetic drive submersible pump is a type of submersible pump designed for applications that require complete sealing to prevent leakage of media during transportation. The submerged parts which contact with the liquid is entirely made of stainless steel, with a depth of 1 to 6 meters. The main parts of the pump are placed inside the liquid and adopts a static sealing design. There is no traditional mechanical seal, and the medium can be completely isolated from external air, truly achieving no-leakage operation.

The pump body, inner rotor, pump cover, impeller isolation sleeve, and pump shaft and other flow-passing components are made of materials such as 304316316L, 904, TA2, HC276, etc. Pumps are widely used in the transportation of high-risk media such as volatile, flammable, explosive, toxic, and harmful medium such as Liquid chlorine in production processes such as petroleum, chemical, coal, alkali production, smelting, rare earth, pesticide, dye, medicine, scientific research institutions, and national defense industry.

Pump outlet:DN25 to DN125

Flow rate:1.8 to 400m3/h

Head:15-125m

Speed:1450rpm/2900rpm

Working temperature: -20 to 200 degrees Celsius

Power: 1.5KW to 110KW
