• Model Number: SC120/090
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

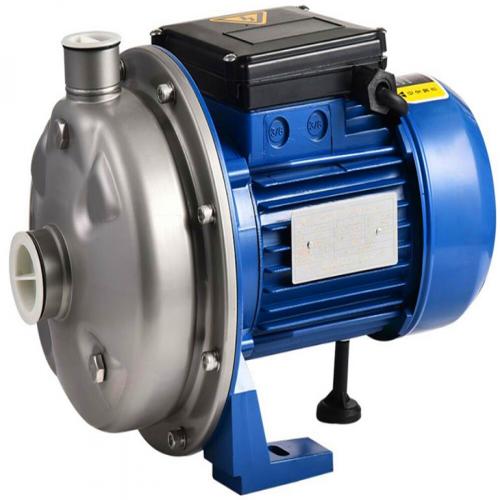

SC120/090 Stainless steel single stage centrifugal horizontal pump 220V/380V Description

CDC Stainless steel single stage centrifugal pump 220V/50HZ/1Phase Or 380V/50HZ/3Phase

Pump Features:

Thermal protector: with thermal protector (single phase)

Insulation level: F level

Protection level: IP55

Working conditions:

Medium temperature: Room temperature type (-20 to 70 ℃)

High temperature type (-20 to 104 ℃)

Environmental temperature: ≤ 50 ℃

Maximum working pressure: 1.0MPa

characteristic:

The overcurrent components are made of SUS304 material

Spiral shell pump body, using liquid bulging technology, compact and sturdy

 High lift, high efficiency

Mechanical shaft seal, safe and reliable

Scope of application:

 Circular cleaning systems for industrial production lines in various fields

 Home water supply system, booster unit

 Agricultural or horticultural sprinkler irrigation

 Cooling water tower
