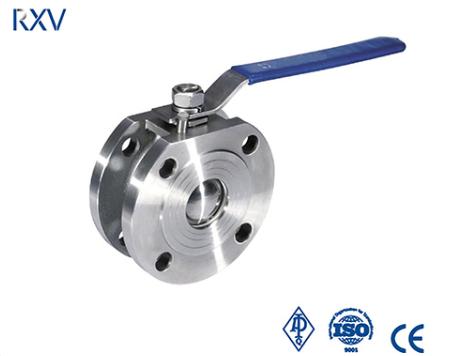

1PC type wafer Ball valve flange end

1PC type wafer Ball valve flange end
  • Model Number: B221
  • Brand Name: RXV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000 pieces/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

B221 1PC type wafer Ball valve flange end Description

Size

1/2 inch - 6 inch



Pressure Rating

ANSI 150 LBS~~ANSI 300 LBS,PN16-PN40,JIS5K-20K



Standard Connections

Flanged Ends (RF,FF)



Material

Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB

Ball:CF8M (SS316), CF8 (SS304)



Features And Benefits

Full Bore

Mounting Pad Available

Fire Safety Seat Sealing

Temperature range: -60 to 450 °F

Blow-out proof stem

100% leakage tested

Locking device (option)

ISO-5211 mounting pad for actuator (option)



Standard

Design and Manufactures: API 6D,API 608, BS5351

Face To Face : ANSI B16.10 /JIS B2002 /DIN 3202

Flange Dimensions: ANSI B16.5/ JIS B2220 / DIN 2633

Checking & Test :API 598 / DIN 12266



Other sizes and pressure classes available. Contact the company for specifications.
