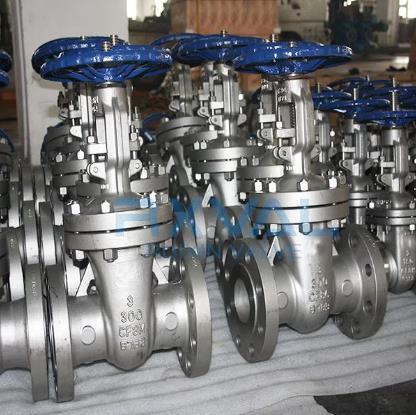

Stainless Steel Gate Valve Flange End

Stainless Steel Gate Valve Flange End
  • Model Number: RXV120
  • Brand Name: RXV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10T/month
  • Payment: T/T,Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

RXV120 Stainless Steel Gate Valve Flange End Description

Product Description

Features

Pressure: 150LB - 1500LB

Full Bore

Rising Stem

Bolted Bonnet OS&Y, Or Pressure Seal Bonnet

Flexible Wedge Or Solid Wedge

Threaded Or Weld Seat Ring

Operated By Handwheel,Gear,Electric, Pneumatic Actuator


Material:

Body/Bonnet: A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14


Standard:

Design & Manufacturer: API 600

Face To Face :ANSI B16.10

End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605

BW ENDS to ANSI B16.25

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75
