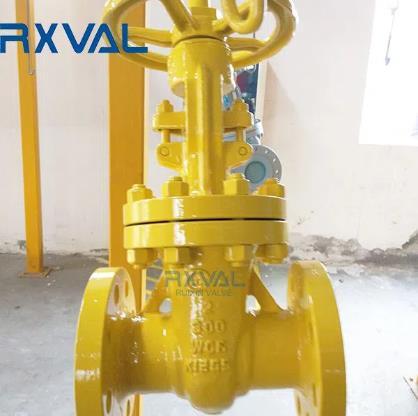

API 600 Flanged End/ BW End Stainless Steel Gate Valve

API 600 Flanged End/ BW End Stainless Steel Gate Valve
  • Model Number: RXV130
  • Brand Name: RXV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10T/month
  • Payment: T/T,Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

RXV130 API 600 Flanged End/ BW End Stainless Steel Gate Valve Description

Standard Material Specification

Features

OS&Y,Rising Stem,Flexible or Solid Wedge

Bolted Bonnet,Threaded or Welded Seat Ring

Non-Rising Gate Valve


Standard :

Design: API 600

Face to Face: ANSI B16.10

End Flange Dimension: ANSI B16.5- - 2”-24”

MSS SP-44 - - 26”-60”

BW End : ANSI B16.25

NACE MR-01-75 on request


Material:

Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14
