Hebei Yaosheng IM & EX Trading CO.,Ltd was founded in 2018, main in producing and supplying products like valve, flange, pipe fitting and so on, our products are selled to Middle East, Central Asia, Southeast Asia and other markets.

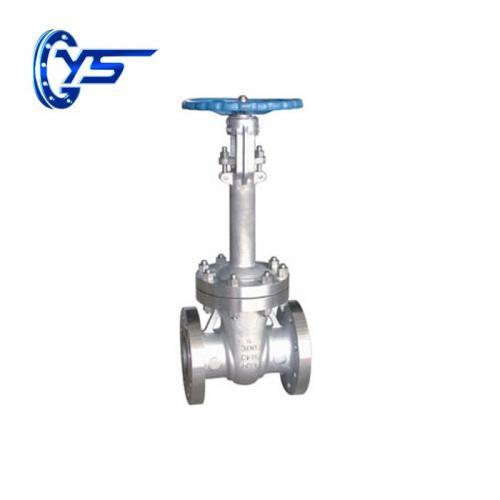

ANSI Low Temperature steel Gate Valve

ANSI Low Temperature steel Gate Valve
  • Model Number: DN 50-1000mm
  • Brand Name: HBYS
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

DN 50-1000mm ANSI Low Temperature steel Gate Valve Description

DN 50-1000mm ANSI Low Temperature steel Gate Valve  Low Temperature steel Gate Valve price  LOW TEMPERATURE STEEL SERIES

Medium: propylene, propane, methanol, ethane, gas, liquid ammonia;

Operating temperature: LCB: -46 ℃; LC1: -60 ℃; LC2: -73 ℃

Operation mode: manual, electric

Caliber: 1 "-16"

Pressure: 150-600LB

Body material: low temperature steel

Connection method: flange



LOW TEMPERATURE STEEL SERIES Details

ANSI Low Temperature steel Gate Valve Material of main parts

Part Name

material

Body / bonnet

LCB, LC1, LC2

Valve stem

F431, F304, F304L

Valve seat

STL

ANSI Low Temperature steel Gate Valve Performance Specification


model

Nominal pressure

Test pressure (mpa)

Applicable medium


Strength (water)

Sealed (water)


DZ41Y-150 LB

150 LB

2.40

1.76

Propylene, propane, methanol, ethane, gas, liquid ammonia


DZ41Y-300 LB

300 LB

3.75

2.75


DZ41Y-600 LB

600 LB

6.00

4.40




Low Temperature steel Gate Valve dimensions and connection dimensions

model

Nominal diameter
(mm)

Size (mm)






L

D

D1

D2

b

Zφd

DZ41Y-150LB

2"

178

152

120.5

92

16

4 * φ19

2 1/2 "

190

178

139.7

105

18

4 * φ19

3 "

203

190

152.5

127

19

4 * φ19

4 "

229

229

190.5

157

23.9

8 * φ19

5 "

254

254

215.9

186

25.4

8 * φ22

6 "

267

279

241.5

216

28.5

8 * φ22

8"

292

343

298.5

270

30.2

8 * φ22

10 "

330

406

362

324

31.2

12 * φ25



We can design and produce various standard Valve. Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, GOST series Valve are our main products.
