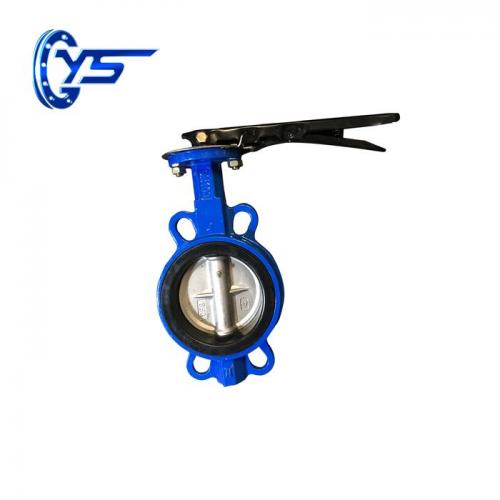

Wafer Centerline Butterfly Valve

Wafer Centerline Butterfly Valve
  • Model Number: DN40-200
  • Brand Name: HBYS
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

DN40-200 Wafer Centerline Butterfly Valve Description

D71X-10 / 10Q / 16 / 16Q Wafer Centerline Butterfly Valve  Butterfly Valve manufacturer  GOST SERIES

Medium temperature: ≤80 ℃
Medium: water
caliber: DN40-200
pressure: 1.0-1.6mpa
valve body material: gray cast iron / nodular cast iron
connection method: wafer type

Butterfly Valve Details

 Wafer Centerline Butterfly Valve Material of main parts

Part Name

material

Valve body

Grey cast iron / nodular cast iron

Butterfly

Ductile iron / SS

Valve shaft

Carbon steel

Sealing ring

EPDM



 Wafer Centerline Butterfly Valve Performance specifications

model

Nominal pressure
(mpa)

Test pressure (mpa)

proper temperature

Applicable medium

Strength (water)

Sealed (water)

D71X-10

1.0

1.50

1.10

≤80 ℃

water

D371X-10

D71X-16

1.6

2.40

1.80

≤80 ℃

water

D371X-16



 Wafer Centerline Butterfly Valve Dimensions and connection dimensions

model

Nominal diameter
(mm)

Size (mm)

φ

H

B

Z-φd

L

D71X-10 / 16

40

110

160

234

4-φ21

43

50

125

170

234

4-φ23

43

65

145

178

261

4-φ23

46

80

160

202

261

8-φ18

46

100

180

222

259.5

4-φ23

52

125

210

233

312

4-φ23

56

150

240

257

312

4-φ26

56

200

295

295

360

4-φ26

60



With many years’ export experiences, our DIN Gate Valve and two-piece ball valve have been welcomed in international markets.
