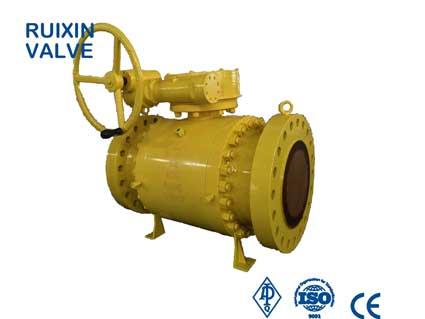

API6D Trunnion Mounted Ball Valve Forging Steel

API6D Trunnion Mounted Ball Valve Forging Steel
  • Model Number: B251
  • Brand Name: RXVAL
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100Ton/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

B251 API6D Trunnion Mounted Ball Valve Forging Steel Description

Product DetailsSize

2 inch - 24 inch



Pressure Rating

150LB - 2500 LB



Standard Connections

Flanged Ends (RF,FF)



Material

Body/Bonnet: A216WCB/A105 ,A351 CF8/F304 ,A351 CF8M/F316 ,ETC.

Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC

Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal



Features And Benefits

Two/Three Piece.

Two Piece

Full or Reduce Bore

Trunnion Mounted Ball,Hollow Or Solid Ball

Fire Safety Seat Sealing

Anti-Static Spring Device

Blow-out proof stem

Low Emission

Double Block and Bleed

Operated by Lever ,Electric.Pneumatic Actuator



Standard

Design and Manufactures : API 6D/ ASME B16.34

Face To Face :ANSI B16.10

End Flange : ANSI B16.5, BW Ends To ANSI B16.25

Fire Safe : API 607 Or API6FA

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
