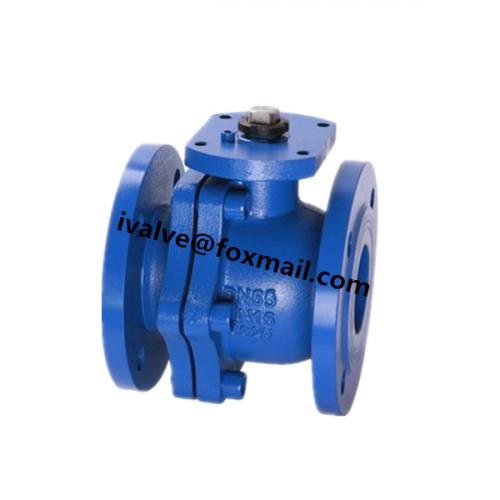

Cast Iron Flanged Ball Valve

Cast Iron Flanged Ball Valve
  • Model Number: BV001
  • Brand Name: BallValves
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

BV001 Cast Iron Flanged Ball Valve Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint


Main Parts Material
Body:Cast iron
Nut/bolting:Carbon Steel
Ball:2Cr13
Seat:PTFE
Stem:SS304
Lever:Ductile Iron(GGG40)
Operation:Handle Lever/Gear Box/Actuators
Size:DN50~DN250
Pressure:PN10/16

Standard:
Working temperature: -20 °C ~ +120 °C
Face To Face :DIN3202 DN15-DN100 DIN3202 (F4); DN125-DN250 DIN3202 (F5)
End Flange Dimensions:EN 1092-2 etc.
Testing:DIN3230,API598
Medium:Water,oil,gas etc.

Body Cast Iron/Cast Steel/Steel Steel
Bonnet Cast Iron/Cast Steel/Steel Steel
Ball 2Cr13/SS304
Stem Stainless Steel
Seat PTFE/RPTFE
