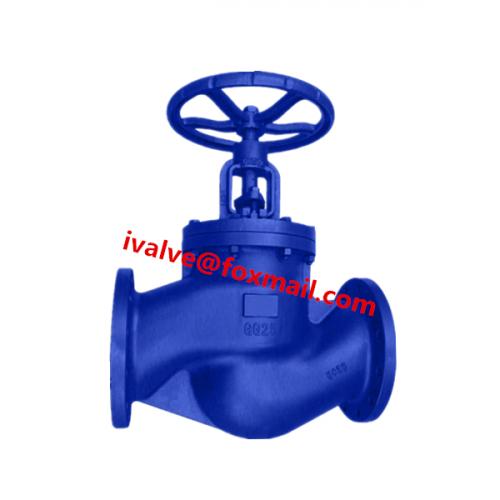

DIN Globe Valve / Angle Type Globe Valve

DIN Globe Valve / Angle Type Globe Valve
  • Model Number: GLV001
  • Brand Name: GlobeValves
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

GLV001 DIN Globe Valve / Angle Type Globe Valve Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint


DIN Globe Valve / Angle Type Globe Valve
Size: DN15-DN300
Medium: Water, steam, oil
Standard: GOST/DIN/ANSI/GB
Working temp.: ≤ 200degree
Flange dimensions: DIN2501 PN10/16
Face to face: DIN3202/DIN3352 F1


Material
Valve Body:
Cast Iron(CI): ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200
Ductile Iron(DI): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15
Stem: Zinc Plated Carbon Steel, Stainless Steel: ASTM A276 Type 316/304/410/420, ASTM A582 Type 416.

Body&Bonnet Cast Iron
Disc A105/Cast Iron+2Cr13
Stem Stainless Steel
Seat Ring Stainless Steel
Face to Face DIN3202/DIN3352 F1
