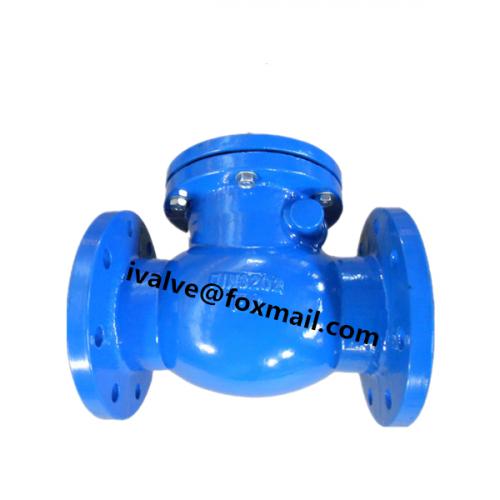

Cast Iron Swing Type Check Valve

Cast Iron Swing Type Check Valve
  • Model Number: CV005
  • Brand Name: CheckValves
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CV005 Cast Iron Swing Type Check Valve Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint


Specifications

Valve Standard: DIN3352, MSS SP-7, BSEN 12334

Nominal diameter: 2"-24"/DN50-DN600

Working pressure: 10/16/25Bar;125/150PSI

Face-to-face: ANSI B16.10, ISO 5752 Series 10, EN 558 Series 10, DIN3352 F6

Flange accommodation: ANSI B16.1 Class125/150, EN1092-2 PN16

Tightness check: API 598, ISO 5208, EN12226-2


Material

Body: Cast iron or ductile iron

Bonnet: Cast iron or ductile iron

Seat ring: Brass or Cast bronze or stainless steel(SS304)

Arm: Cast iron or ductile iron

Disc: Cast iron or ductile iron

Pin: Stainless steel

Body/Bonnet Cast Iron
Disc Cast Iron+Bronze/Brass/2Cr13
Seat Ring Bronze/Brass/2Cr13
Design and Manufacturer DIN3352/MSS SP-71
Nominal Pressure PN16/125PSI/250PSI
