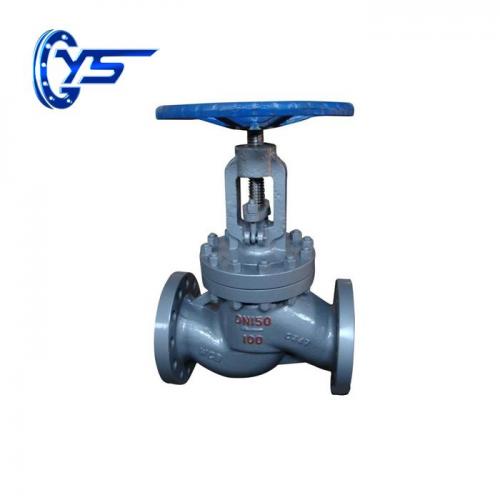

Cast Steel Globe Valve
- Model Number: DN 15-250mm
- Brand Name: HBYS
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 500/month
- Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
- MemberShip: Free Member
- Inquiry Now
DN 15-250mm Cast Steel Globe Valve Description
DN 15-250mm Cast Steel Globe Valve globe valve manufacturer GOST SERIES
Medium temperature: ≤425 ℃
Operating mode: manual / electric
medium: water, oil, steam, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: WCB
Connection method: flange
Square Flange Globe Valve Details
Cast Steel Globe Valve Material of main parts of cast steel globe valve
Part Name
material
Body / bonnet
WCB
gate
WCB
Valve stem
WCB / 2cr13
Stem nut
Ductile iron / brass
Cast Steel Globe Valve Performance specifications of cast steel globe valve
model
Nominal pressure
(mpa)
Test pressure (mpa)
proper temperature
Applicable medium
Strength (water)
Sealed (water)
J41 / 941H / Y-16C
1.6
2.40
1.80
—29—425 ° C
Water, steam, oil, etc.
J41 / 941H / Y-25C
2.5
3.80
2.80
J41 / 941H / Y-40C
4.0
6.15
4.51
J41 / 941H / Y-64C
6.4
9.75
7.15
External dimensions and connection dimensions of cast steel globe valve
model
Nominal diameter
(mm)
Size (mm)
L
D
D1
D2
bf
z-φd
H1
J41 / 941H / Y-16C
15
130
95
65
45
14-2
4 * φ14
205
20
150
105
75
55
14-2
4 * φ14
211
25
160
115
85
65
14-2
4 * φ14
223
32
180
135
100
78
16-2
4 * φ18
250
40
200
145
110
85
16-3
4 * φ18
288
50
230
160
125
100
16-3
4 * φ18
321
65
290
180
145
120
18-3
4 * φ18
341
80
310
195
160
135
20-3
8 * φ18
385
100
350
215
180
155
20-3
8 * φ18
437
125
400
245
210
185
22-3
8 * φ18
471
150
480
280
240
210
24-3
8 * φ23
516
200
600
335
295
265
26-3
12 * φ23
610
Tips:
Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible operation
Flanged Globe Valve Applications:
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.
Product Advantages:
We have Sand or Precision casting technology,So we can as your drawing design and production.
Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing.
4. Use the CNC lathe during whole process.
5. The disc sealing surface use plasma welding machine welding.
6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.
7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.
Company Advantages:
1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!
Retaled category: Globe Valve
Hot search: globe valve, steel globe valve, cast globe valve
