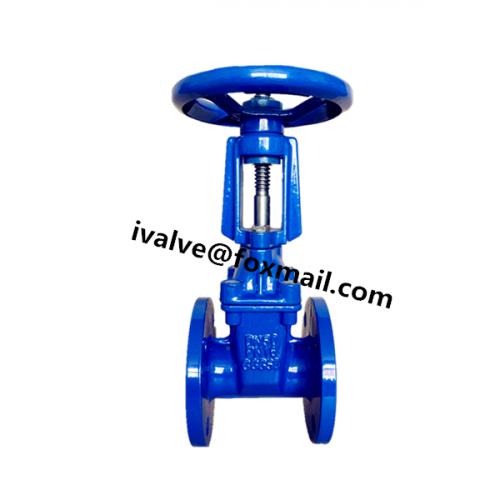

DIN Rising Stem Gate Valve
- Model Number: GTV001
- Brand Name: GateValves
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10 PCS
- Supply Capacity: 200 Tons/month/month
- Payment: T/T,L/C
- MemberShip: Free Member
- Inquiry Now
GTV001 DIN Rising Stem Gate Valve Description
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
DIN F4/F5 Resilient Seated Gate Valve
Specifications
1. Suitable media: Water.
2. Flange: DIN2501/EN1092-2 PN10/16/25.
3. Nominal diameter: DN40~DN600 (1 1/2"~24").
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.
6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
7. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).
8. Face-to-face conform to DIN3352/DIN3202 F4/F5(ISO5752 Series14/15)/EN558-1 Series14/15.
Main parts materials
A) Seat: EPDM/NBR/Brass.
B) Gland follower: Brass/ductile iron.
C) Bolt and nut: Stainless steel, steel with zinc.
D) Stem: Stainless steel, brass, bronze, steel with zinc.
E) Hand-wheel: Ductile iron/ malleable Iron/carbon steel.
F) Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).
Body&Bonnet | Ductile Iron |
---|---|
Disc | Ductile Iron+EPDM/NBR |
Stem | Stainless Steel |
Design | DIN3352 F4/F5 |
Face to Face | DIN3202/ISO5752 |
