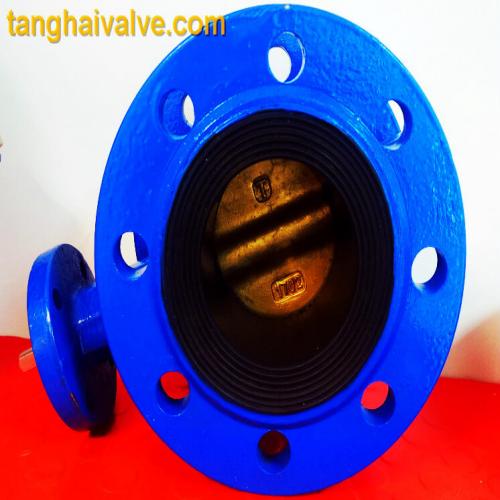

Double flange butterfly valve (TH-BTV-DF)
- Model Number: TH-BTV-DF
- Brand Name: THV
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10sets
- Supply Capacity: 1000sets/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
TH-BTV-DF Double flange butterfly valve (TH-BTV-DF) Description
Area of application
Marine industry, Water supply & drainage, fire fighting, shipbuilding, water treatment and other systems
Data sheet of Double flange Butterfly valve
TYPE:Double flangedSIZE & CONNECTIONS:DN50 to D1200MEDIUM:Air, Inert Gas, Oil, Seawater, Waste water, WaterMATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / StainlessSteel / Alu BronzePRESSURE RATING:PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable / Bonded vulcanized Liner
NBR/EPDM/VITON, PTFE/PFA full linedCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)
Standards
Design and Manufacture Conform to EN 593、 API609
Flange dimensions Conform to EN 1092-2 PN10
Face to Face dimensions Conform to EN558 series
Topwork’s dimensions Conform to ISO5211
Testing Conform to API598、EN12266-1
Material of Parts
PART NAMEMaterialBODYASTM A536 65-45-12/ASTM A126 BEN-JL 1040 (GG-25)
EN-JS 1030 (GGG-40)
EN-JS 1049 (GGG 40.3)
Stainless steel (1.4408)
Alu-BronzeDISC / PLATEDI+NI,CF8/CF8M,C954/C958
EN-JS 1030 (GGG-40)
Stainless steel (1.4408)SHAFT / STEMSS431/SS420/SS410/SS304/SS316SEAT / LININGNBR/EPDM/VITON /PTFE/PFATAPER PINSSS416/SS316BUSHINGBRASS/PTFEO-RINGNBR/EPDM/VITON /PTFEKEYSTEEL
Actuation
Worm-gear/hand-wheel
Electric-actuator
Pneumatic-actuator
Hydraulic-actuator
Double flange butterfly valve features
Simple structure and easy operation
Easy installation and good sealing
Long service life and high reliability
Good interchangeability of parts and cost saving
Wafer type butterfly valve with concentric design
Using backless structure, Rubber fusion bonded on valve body
Replaceable, resilient seat
Streamlined disc, one-piece stem
Approved and registered by VdS, DVGW
Related types of butterfly valves:
We have other types of butterfly valves: wafer butterfly vlave, Lug type butterfly valve, U flange butterfly valve, fluorine lined PTFE butterfly valve, double eccentric butterfly valve and triple eccentric butterfly valves used in Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D
