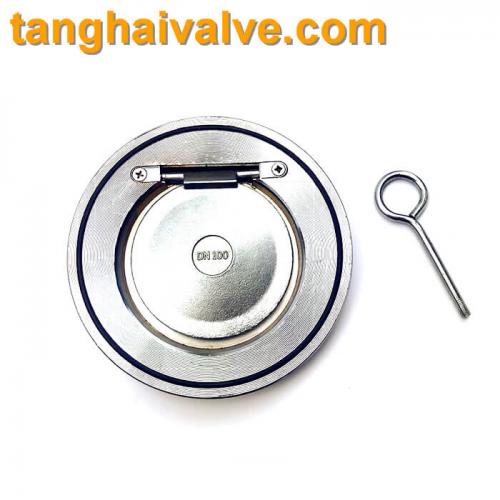

Single-disc swing check valve (TH-CKV-SDS)
- Model Number: TH-CKV-SDS
- Brand Name: THV
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10sets
- Supply Capacity: 1000sets/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
TH-CKV-SDS Single-disc swing check valve (TH-CKV-SDS) Description
Area of application
Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems
Data sheet of Single-disc swing check valve
TYPE:Wafer, single discSIZE & CONNECTIONS:DN50 to D600MEDIUM:Air, Inert Gas, Oil, Seawater, Waste water, WaterMATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / StainlessSteel / Alu BronzePRESSURE RATING:PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITONCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)
Standards
Design and Manufacture Conform to API 6D
Dimensions Conform to ANSI B16.5
Face to Face dimensions Conform to API 6D
Testing Conform to API598
Material of Single-disc Swing check valve Parts
PART NAMEMaterialBODYASTM A182 F304A216 WCBDISC / PLATEASTM A182 F304
A216 WCB
A536 65-45-12SHAFT / STEMSS431/SS420/SS410/SS304SEAT / LININGNBR/EPDM/VITONBOLTSCarbon steelNUTSStainless steelSPRINGSS304/SS306
Sing-disc swing check valve features
The structure length is short, its structure length is only 1/4~1/8 of the traditional flange check valve
Small size, light weight, its weight is only 1/4~1/20 of the traditional flange check valve
The valve disc closes quickly and the water hammer pressure is small
Both horizontal and vertical pipes can be used, easy to install
Smooth flow channel, fluid resistance is small
Sensitive action and good sealing performance
Short disctravel, low valve closing impact
The overall structureis simple and compact, beautiful appearance
Long service lifetime and high reliability
Related types of check valves:
We have other types of check valves: dual plate check valve, tilting disc swing check valve, lift swing check valve, silent check valve, ball check valve used in Oil, Gas, Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D
Retaled category: Check Valve
Hot search: single-disc swing check valve, china single-disc swing check valve factory
