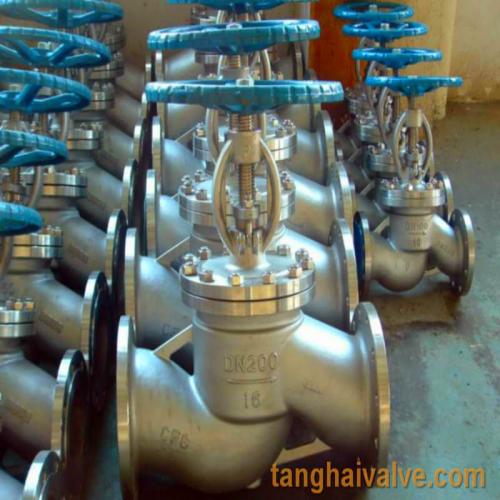

Globe valve (TH-GBV)

Globe valve  (TH-GBV)
  • Model Number: TH-GBV
  • Brand Name: THV
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10sets
  • Supply Capacity: 1000sets/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

TH-GBV Globe valve (TH-GBV) Description

The globe valve is a tool that relies on the pressure of the valve stem to make the sealing surface of the valve flap closely fit the sealing surface of the valve seat to prevent the flow of media. It is a forced seal valve and is one of the most widely used valves.

According to the direction of the channel, the globe valve is divided into four types: straight-through globe valve, direct current globe valve, angle globe valve, plunger globe valve.

The structural length of the globe valve is greater than that of the gate valve, and at the same time, the fluid resistance is large. During long-term operation, the reliability of the seal is not strong.

Area of application

Marine industry, Water supply & drainage, fire fighting, shipbuilding, water treatment, power stations, energy, food, chemical, and other systems

Data sheet of Globe valve:

TYPE:Wafer, double flangeSIZE & CONNECTIONS:DN50 to D600MEDIUM:Waste water, Water, Seawater, Air, Inert Gas, Oil.MATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu BronzePRESSURE RATING:PN6, PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITONCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

Design and Manufacture Conform to DIN3356, EN13789

Dimensions Conform to EN1092-2,ANSI B16.5

Face to Face dimensions Conform to EN558-1, API 594, DIN3356

Testing Conform to EN12266-1, API598

Material of Globe valve Parts

PART NAMEMaterialBODYCast Iron; Ductile Iron; Stainless Steel; Carbon steelDISC / PLATEStainless Steel; Carbon steel; BronzeSHAFT / STEMStainless Steel Monel; Stainless Steel InconelSEAT / LININGNBR/EPDM/VITONBOLTSCarbon steelNUTSStainless steelGASKET/PACKINGGraphiteWASHERSteelHANDWHEELCast IronBUSHING/RINGCast Brass

Globe valve features

The structure of the globe valve is simpler than the gate valve, and it is more convenient to manufacture and maintain.

The sealing surface is not easy to be worn and scratched, with good sealing performance and long service life.

When opening and closing, the flap travel distance is small

The opening and closing torque is large, the opening and closing is more laborious, and the opening and closing time is longer.

Large fluid resistance and large power consumption.

The valve flap is often eroded when fully opened.

Disadvantages

The fluid resistance is large, and the force required when opening and closing is large.

It is not suitable for medium with particles, high viscosity and easy to coking.

Poor adjustment performance
