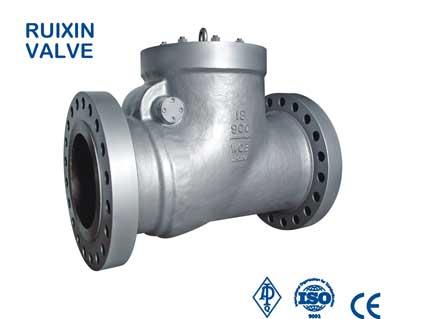

Flanged Casting Check Valve

Flanged Casting Check Valve
  • Model Number: C111
  • Brand Name: RXVAL
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100Ton/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

C111 Flanged Casting Check Valve Description

Product DetailsSize

2 inch - 48 inch



Pressure Rating

150LB - 2500 LB



Standard Connections

Flanged Ends (RF,FF)



Material

Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Seat: A105+13CR / A105+STELLITE 6,ETC

Trim: NO.1 ‐ NO.14



Features And Benefits

Full Bore

Bolted Cover Or Pressure Seal Bonnet

Swing Type Disc or Lift Type Disc

Threaded Or Weld Seat Ring



Standard

Design & Manufacturer: BS1868 or API 6D

Face To Face :ANSI B16.10

End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605

BW ENDS to ANSI B16.25

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
