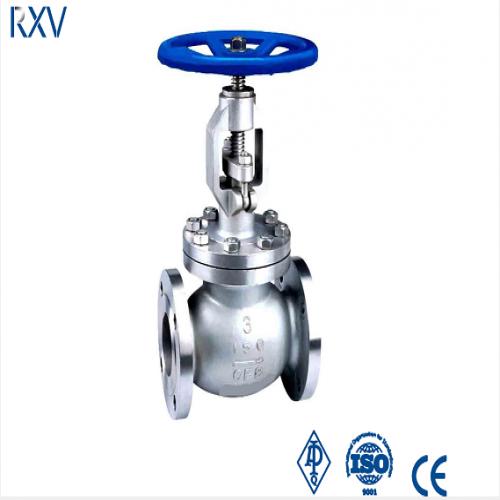

G222 Flanged Casting Globe Valve 150LB 6" Description

Pressure Rating

150LB - 2500 LB



Standard Connections

Flanged Ends (RF,FF)



Material

Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14



Features And Benefits

Full Bore

Rising Stem

Bolted Bonnet OS&Y, Or Pressure Seal Bonnet

Flexible Wedge Or Solid Wedge

Threaded Or Weld Seat Ring

Operated By Handwheel,Gear,Electric, Pneumatic Actuator



Standard

Design & Manufacturer: BS1873

Face To Face :ANSI B16.10

End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605

BW ENDS to ANSI B16.25

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
