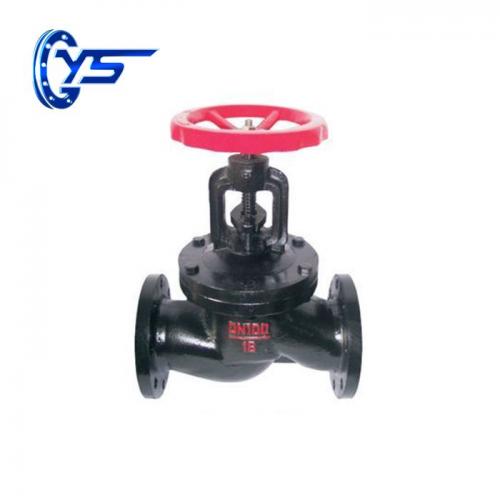

Flanged Globe Valve

Flanged Globe Valve
  • Model Number: DN 15-200mm
  • Brand Name: HBYS
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T / T, L / C, D / P, D/ A, credit card, PayPal, Western Union remittance, cash, custody
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

DN 15-200mm Flanged Globe Valve Description

DN 15-200mm Flanged Globe Valve  globe valve manufacturer  GOST SERIES

Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN15-300
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange

globe valve Details

Flanged Globe Valve Main parts and materials

Parts name

Material

Valve body Bonnet

Grey iron

Disc

Grey iron

Stem

Carbon steel

Yoke nut

Copper (Iron)

Flanged Globe Valve Function and specification


Type

Nominal
pressure
(mpa)

Testing pressure(mpa)

Suitable
temperature

Suitable
medium


Strength
(Water)

Enclose
(Water)


J41T-16

1.6

2.40

1.80

≤200℃

Water,Vapour




Flanged Globe Valve Outline and connecting measurement

Type

Nominal
DN(mm)

Measurement(mm)

L

D

D1

D2

b-f

z-φd

H1

J41T-16

15

130

95

65

45

14-2

4*φ14

200

20

150

105

75

55

16-2

4*φ14

200

25

160

115

85

65

16-2

4*φ14

220

32

180

135

100

78

18-2

4*φ18

245

40

200

145

110

85

18-3

4*φ18

260

50

230

160

125

100

20-3

4*φ18

285

65

290

180

145

120

20-3

4*φ18

300

80

310

195

160

135

22-3

8*φ18

350

100

350

215

180

155

24-3

8*φ18

365

125

400

245

210

185

26-3

8*φ18

430

150

480

280

240

210

28-3

8*φ23

450

200

600

335

295

265

30-3

12*φ23

510



If you are finding Cast Steel Globe Valve supplier in China, we will be your best choose! We have our own factory, so we can give you a cheap price!
