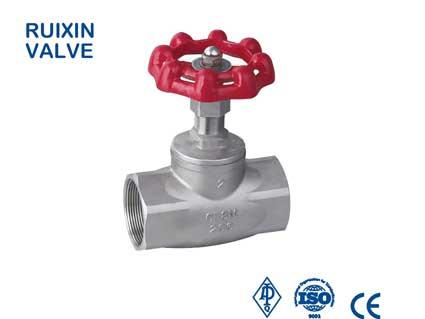

Threaded Casting Globe Valve

Threaded Casting Globe Valve
  • Model Number: G223
  • Brand Name: RXVAL
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100Ton/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

G223 Threaded Casting Globe Valve Description

Product DetailsSize

1/2 inch - 4 inch



Pressure Rating

200 PSI



Standard Connections

Threaded (BSP. NPT. PT. DIN 259, 2999)



Material

Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB



Features And Benefits

Full Bore

Non‐Rising Stem and HandWheel

Loose solid disc, integral seat

Temperature range: -60 to 450 °F

100% leakage tested

Y-Globe valve would be available



Standard

Design : ASME B16.34

Thread Acc: ANSI B1.20.1

Checking & Test : API 598



Other sizes and pressure classes available. Contact the company for specifications.
