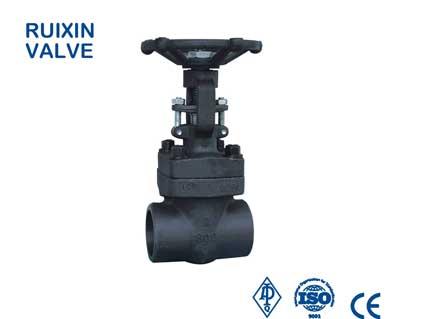

G112 Threaded Forging Gate Valve Description

Product DetailsSize

1/2 inch ~ 2 inch



Pressure Rating

150LB ‐ 4500 LB



Standard Connections

NPT,BSP,SW,BW



Material

Body/ Bonnet: A105, A350 LF2 , A182 F11, F22, A182 F304, F316 , F316L. A182 F51. Monel, 20# Alloy, Etc

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14



Features And Benefits

Bolted Bonnet

Full or Reduce Bore

Solid Wedge Disc, Integral Seat



Standard

Design & Manufactures: API 602

Face To Face :ANSI B16.10

Screwed Ends To ASME B1.20.1 , BW Ends To ANSI B16.25 ,SW Ends to ASME B16.11

Checking & Test : API 598

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
