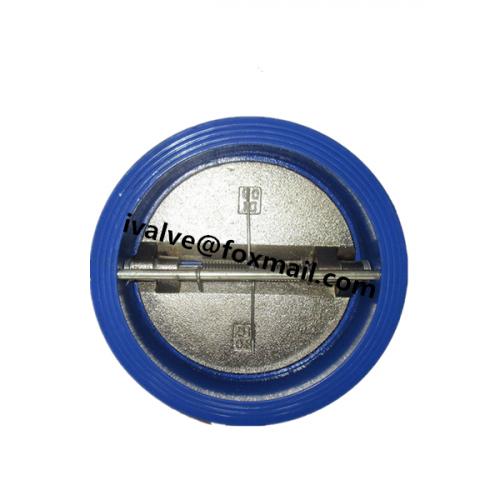

Wafer Type Spring Loaded Check Valve

Wafer Type Spring Loaded Check Valve
  • Model Number: CV006
  • Brand Name: CheckValves
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CV006 Wafer Type Spring Loaded Check Valve Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint


Specifications

Wafer check valve, dual plate, suitable for ANSI/DIN/BS

Valve Design: API 594

Valve Pressure Testing & Inspection: API 598

Flange Connections: DIN PN10/16 ,BS 4504 OR ANSI Class 125/150

Body: Cast Iron, Ductile Iron, Stainless Steel, WCB

Disc: DI nickel plated, SS316, SS304.

Spring: SS304, SS316.

Body Cast Iron
Disc CI/DI/Stainless Steel/Al-bronze
Seat EPDM
Stem Stainless Steel
Coating Epoxy Coated
