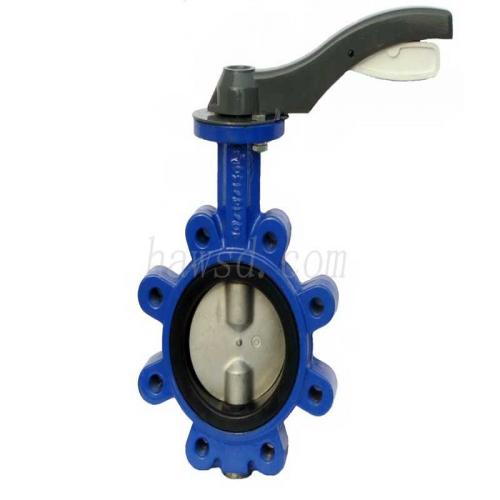

Aluminium Handle Lug Butterfly Valve

Aluminium Handle Lug Butterfly Valve
  • Model Number: D71X-10/16
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 250/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

D71X-10/16 Aluminium Handle Lug Butterfly Valve Description

Adoptive standards:



Item    Name     Material

1    body    CI/DI

2    bushing    polymer

3    seat    EPDM/NBR/PTFE

4    disc    DI/CF8/CF8M/Al-bronze

5    stem    SS416/SS304/SS316

6    pin     SS316/SS416

7    bushing    polymer

8    O-ring    NBR


Features:

Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.Special Test: On request, any other test can be carried out according to special instruction by client.

Application:

1.Water Treatment Plant ;
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant;
12.Compressed Air.


Nominal Size 2~20"(DN50~DN500)
Nominal Pressure PN10, PN16, Class125
Material of body Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze
Seat Materials NBR, EPDM, VITON, PTFE
Disc Materials Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
