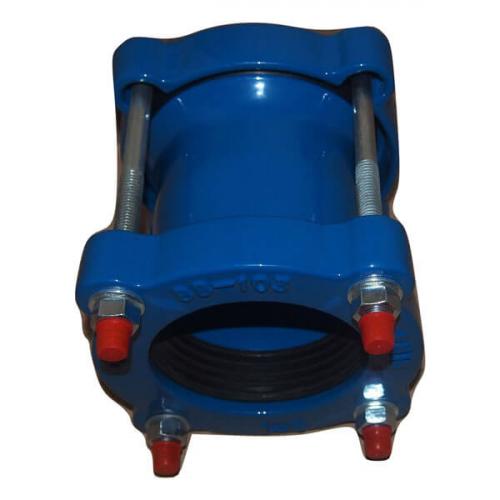

Flexible Multi-Function Pipe Coupling

Flexible Multi-Function Pipe Coupling
  • Model Number: ZFJ-S
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 300/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

ZFJ-S Flexible Multi-Function Pipe Coupling Description

Adoptive standards:



Components:    Property

Stainless steel band:    SUS 304

Fastener:    GGG50

Bolt:    SUS 304,316,Q235

Nut:    SUS 304,316,Q235

Shim:    SUS 304,316,Q235

Rubber sealing cylinder:    EPDM    (-20℃—+140℃)Water,air,powdered ;dust and ordingary steam


NBR    (-20℃—+140℃)Natural gas,oil,gasoline other hydro-carbonate


Features:

ZFJ series offer safe and quick installation, no need of disassembled any part. Suit for irregular and deformation pipes(with a deviation of 3°), it works well even if the pipe is swelled, shrinked or moved. The coating of end cap compliance with the standard NSF61, durable, resistant to corrosion,wide applicable temperature range and less abrasion.
1.More economic than mechanical splice.
2.Good corrosion resistance can be compared with DI pipe.
3.Less inventory pressure.
4.Save space.
5.Flexible. Suit for nearly all the DI, asbestos cement and other kinds of pipes in rated sizes.

Application:

1.Suit for irregular and deformation pipes(with a deviation of 3°);
2.It works well even if the pipe is swelled, shrinked or moved.


Name ZFJ series
Working pressure 1.6MPa
