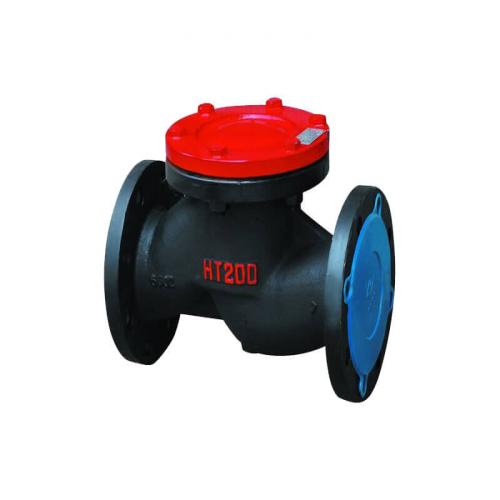

Swing Start Check Valve

Swing Start Check Valve
  • Model Number: SCV-02
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 400/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

SCV-02 Swing Start Check Valve Description

Adoptive standards:

Parts ;nameH41T-16H41W-16H41H-16 DiscGrey ;iron ;BrassGrey ;iron Grey ;iron ;RubberValve ;body ;Bobbet Grey ;iron Grey ;iron Grey ;iron Seal ;ring ;Brass Grey ;iron  RubberRod ;pin,Axle ;pin

Carbon ;steel ;Ductile ;ironl ;

Features:

1.Tthe structure length is short, its structure length is only the traditional flange check valve 1/4~1/8.
2.Small size, light weight, its weight is only the traditional flange check valve 1/4~1/20.
3.The valve flap closed fast, water hammer pressure is small.
4.Horizontal pipe or vertical pipe can be used, convenient installation.
5.The flow channel is unobstructed, the fluid resistance is small.
6.Sensitive action, good sealing performance.
7.Short stroke, close the impact force is small.
8.The overall structure is simple and compact, beautiful appearance.
9.Long service life, reliable performance.

Application:

1.Chemical;
2.Pharmaceutical;
3.Chemical fertilizer;
4.Electricity and other pipeline.


Strength(water)(MPa) 1.5Mpa
Sealing (water)(MPa) 1.1Mpa
Suitable medium Vapour Water Oil Water
