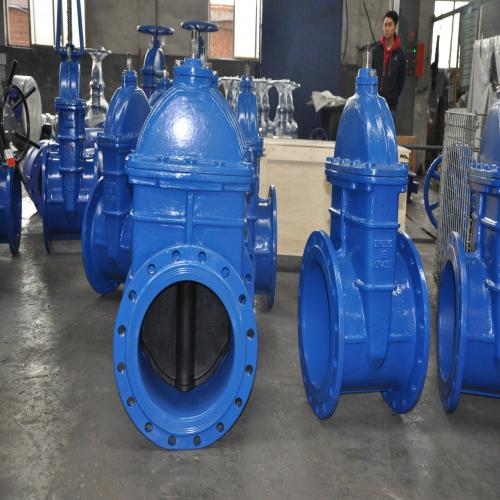

ANSI Cast Iron Gate Valve

ANSI Cast Iron Gate Valve
  • Model Number: Z41H-150LBC
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 300/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Z41H-150LBC ANSI Cast Iron Gate Valve Description

Adoptive standards:

Main Specifications
Product name : ANSI Cast Iron gate valve
Product model: Z41H-150LBC
Inside Nominal Diameter: DN50-200
Nominal Pressure: PN1.6/2.5mpa
Applicable temperature: ≤425℃
Applicable media: Water .Oil .Gas
Body material : ;cast iron
Connecting type : Flange


Features:

Small flow resistance .the way inside valve is direct through,the media can easily through the inside way, flow resistance are small.
2.Operate portably and flexibly,compare with globe valve ,the way of Disc move is Vertical with media whether open or close.
3.It is take a long time to open or close because long stem.
4.Water hammer phenomenon will nor happen because it cost long time to open and close.
5.The medium can flow in any direction on both sides, and is easy to install. Gate valves are symmetrical on both sides of the channel.



Application:

1.Architectonics;
2.Edibles;
3.Medicine;
4.Chemical;
5.Energy;
6.Applying and draining.


Nominal Size DN50-200
Nominal Pressure PN1.6/2.5mpa
Applicable temperature ≤425℃
Applicable media Water .Oil .Gas
Connecting type Flange
