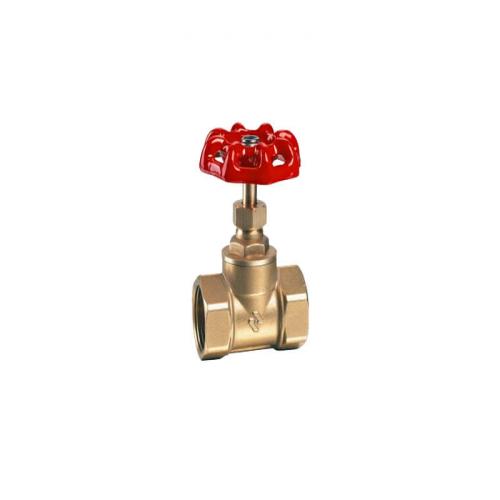

Copper Globe Valve

Copper Globe Valve
  • Model Number: CG2
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CG2 Copper Globe Valve Description

Adoptive standards:

Main parts and materials
Bady :CW619N

Spool :HPb59-1
Bonnet: CW619N
Sealing spacer :PTFE
Packing :PTFE
Nut: HPb59-3
Hand :wheel HT20-40
Nameplates :LF21
Nut :1Cr18Ni9
1.12233-2006< GB/T universal valve iron globe valve and lift check valve>
2.12235-2007< GB/T universal valve flange connection steel valve and lift check valve>
3.JB/T53174-94< cut-off valve product quality grading >
4.JB/T53165-92< high pressure balance valve >
5.587-2008< GB/T marine bronze globe valve>
6.590-2008< GB/T marine flange cast iron globe valve >
7.GB/T 8464-2008< iron and copper thread connection valve>
8.GB8465.2-87< threaded gate valve, globe valve, ball valve, check valve size iron globe valve>

Features:

1.The structure is simple, manufacturing and maintenance is more convenient.
2.The work schedule is small, and the opening and closing time is short.
3.Good sealing, sealing surface between the friction force is small, long life.

Application:

Used to cut off or adjust and throttle.


Body CW619N
Sealing PTFE
Hand wheel HT20-40
