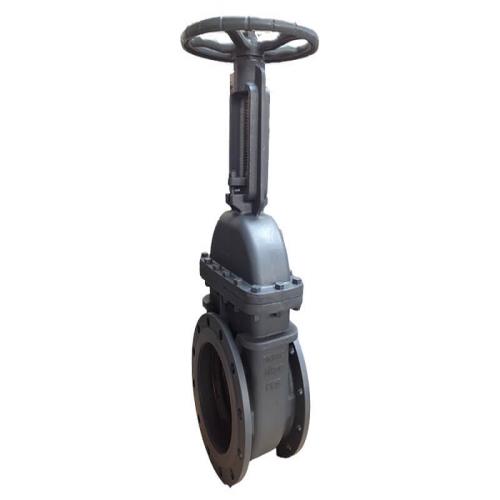

Din rising Stem And Non-Rising Stem Gate Valve

Din rising Stem And Non-Rising Stem Gate Valve
  • Model Number: GG25
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

GG25 Din rising Stem And Non-Rising Stem Gate Valve Description

Adoptive standards:


 TypeFace ;to ;face FlangeStrength(water)(MPa)Sealing ;(water)(MPa)Din rising stem  gate valve DIN3202-F4-F5DIN2532/2533/25011.5/1.11.1 Din non-rising stem gate valve DIN3202-F4-F5DIN2532/2533/25011.5/1.11.8


Features:

1.The flow resistance is small. Body's internal media channel is through the medium into a linear flow, flow resistance is small.
2.Open and close more effort. Is compared with the valve, because whether it is open or closed, the gate were medium flow and is vertical to the direction.
3.Height, open and close for a long time. Gate opening and closing stroke larger drop through the screw.
4.Water hammer phenomenon is not easy to produce. The reason for this is shut down for a long time.

Application:

1.Petro-chem industry;

2.Pharmacy and power industry etc;

3.It can be fixed onti pipes whose flowing agents include steam ,water abd oil etc.


Valve body Bobbe GG25
Disc Grey iron
Stem Brass Stainless steel
Hand wheel GG25
