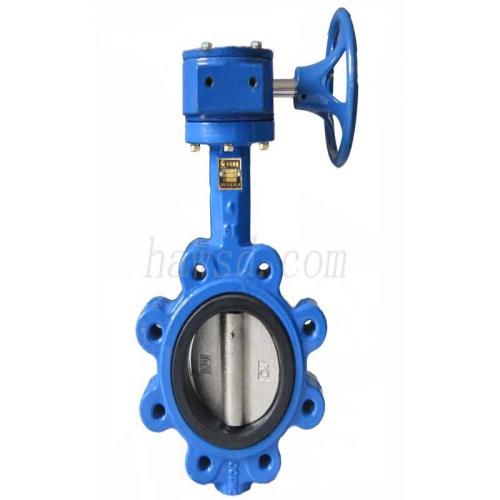

Worm Gear Operated Lug Butterfly Valve

Worm Gear Operated Lug Butterfly Valve
  • Model Number: D371X-10/16
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 300/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

D371X-10/16 Worm Gear Operated Lug Butterfly Valve Description

Adoptive standards:



Name     Material

Body    CI/DI

Bushing    polymer

Seat    EPDM/NBR/PTFE

Disc    DI/CF8/CF8M/Al-bronze

Stem    SS416/SS304/SS316

Pin ;    SS316/SS416

Disc type    With pin, One stem no-pin,Double stem no-pin

O-ring    NBR


Features:

1.Single Eccentric Disc-Shaft
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage

We export our products to more than 50 countries.
1.American: USA, Canada, Ecuador, Peru, Chile, Agentina, Brazil, Mexico, Uruguay, Agentina, Colombia, Costa Rica etc
2.Europe: Germany, Holland, France, Spain, Hungary, Russian, Ukraine, Malta, UK, Portugal etc.
3.Asia: Iran, Israel, U.A.E. Saudi Arabia, Thailand, Singapore, Philippine, Vietnam, ect.
4.Africa: Libya, Egpt, Morocco, Algeria. etc.

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature.
Special Test: On request, any other test can be carried out according to special instruction by client.

Application:

1.Water Treatment Plant ;
2.Drilling Rigs;
3.Paper Industry;
4.Gas Plant;
5.Sugar Industry;
6.Cooling Water Circulation;
7.Breweries;
8.Heating & Air Conditioning;
9.Chemical Industry;
10.Pneumatic Conveyors;
11.Waste Effluent Treatment Plant ;
12.Compressed Air.


Nominal Size 2”~40"(DN50~DN1000)
Nominal Pressure PN10, PN16, Class125
Material of body Cast Iron, Ductile Iron , WCB , Stainless Steel, Bronze
Seat Materials NBR, EPDM, VITON, PTFE
Disc Materials Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
