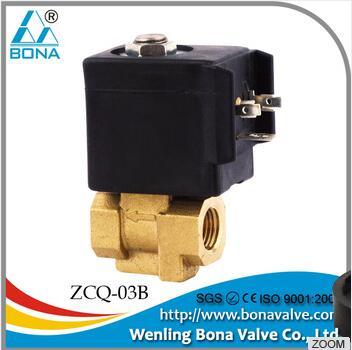

1/4" Brass Wire Feeder electric welding Machine 42V 36V Air Magnetic Valve ZCQ-03B
- Model Number: ZCQ-03B
- Brand Name: BONA
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 10 Piece
- Supply Capacity: 10000 Piece/month
- Payment: L/C,T/T,Western Union
- MemberShip: Free Member
- Inquiry Now
ZCQ-03B 1/4" Brass Wire Feeder electric welding Machine 42V 36V Air Magnetic Valve ZCQ-03B Description
Body material: brass
Structure: Direct action
Type: Normally cosed
Seal Material: NBR,EPDM,VITON
Port size: 1/8''
Port thread: G,NPT,PT
Orifice: 2.2mm
Temperature: 0°C to 80 °C
Medium: water, gas, steam,liquid..
Pressure: 0-1.0Mpa
Voltage: DC-12V,24V,42V / AC12V,24V,36V,42V,110V,220V/50HZ, / others upon request
Tolerance: ±10%
Coil: IP 65,100% ED
Material | Brass |
---|---|
Port Size | 1/4" |
Working Pressure | 0-10bar |
Temperature | 80/160℃ |
dimension | 71.5x34.5x85.5mm |
Retaled category: Solenoid Valve
Hot search: air electric valve, air magnetic valve, air solenoid valve, valve for welding machine
