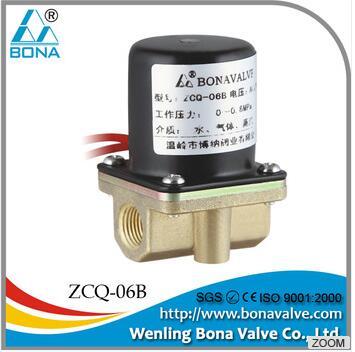

1/8" Brass Wire Feeder Machine 42V 36V 12V gas solenoid steam Valve ZCQ-06B
- Model Number: ZCQ-06B
- Brand Name: BONA
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 10 Piece
- Supply Capacity: 10000 Piece/month
- Payment: L/C,T/T,Western Union
- MemberShip: Free Member
- Inquiry Now
ZCQ-06B 1/8" Brass Wire Feeder Machine 42V 36V 12V gas solenoid steam Valve ZCQ-06B Description
Body material: brass
Structure: Direct action
Type: Normally cosed
Seal Material: NBR,EPDM,VITON
Port size: 1/8''
Port thread: G,NPT,PT
Orifice: 2.2mm
Temperature: 0°C to 80 °C
Medium: water, gas, steam,liquid..
Pressure: 0-1.0Mpa
Voltage: DC-12V,24V,42V / AC12V,24V,36V,42V,110V,220V/50HZ, / others upon request
Tolerance: ±10%
Coil: IP 65,100% ED
| Port Size | 1/8" 1/4'' |
|---|---|
| dimension | 33x33x55mm |
| Seal Material | NBR ,VITON,EPDM |
| Voltage | AC110V AC220V 24V DC 12V DC |
| Temperature | 90℃ |
Retaled category: Solenoid Valve
Hot search: gas solenoid steam valve, gas solenoid valve, gas valve, brass valve, feeder machine valve
