Wenling Bona Valve Co., Ltd.

Free Member

Wenling Bona Valve Co., Ltd. was founded in 2002, main in producing and supplying products like solenoid valve, Safety Valve, Hydraulic valve and so on, our products are selled to Domestic Market, Eastern Europe, Western Europe and other markets.

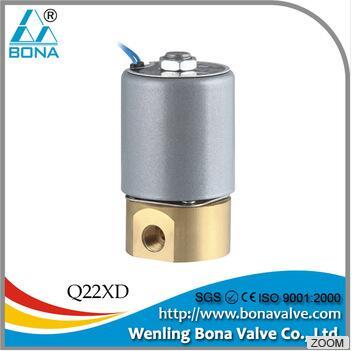

2 way Brass fabric seam Welding Machine 220V 36V Air Electric Valve

2 way Brass fabric seam Welding Machine 220V 36V Air Electric Valve
  • Model Number: Q22XD
  • Brand Name: BONA
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 10 Piece
  • Supply Capacity: 10000 Piece/month
  • Payment: L/C,T/T,Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q22XD 2 way Brass fabric seam Welding Machine 220V 36V Air Electric Valve Description

Body material: brass

Structure: Direct action

Type: Normally cosed

Seal Material: NBR,EPDM,VITON

Port size: 1/8''

Port thread: G,NPT,PT

Orifice: 2.2mm

Temperature: 0°C to 80 °C

Medium: water, gas, steam,liquid..

Pressure: 0-1.0Mpa

Voltage: DC-12V,24V,42V  /  AC12V,24V,36V,42V,110V,220V/50HZ,  /  others upon request

Tolerance: ±10%

Coil: IP 65,100% ED

Material Brass
Pressure Low Pressure
Temperature of Media High Temperature
Port Size 1/4 1/8
Power Solenoid
