Zhongcheng Valve Co.,Ltd was founded in 2003, main in producing and supplying products like Knife gate valve, Ceramic valve, Ball Valve and so on, our products are selled to USA, EUROPE, THAILAND and other markets.

Cast Iron Knife Gate Valve

Cast Iron Knife Gate Valve
  • Model Number: PZ73X 2”-24”
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

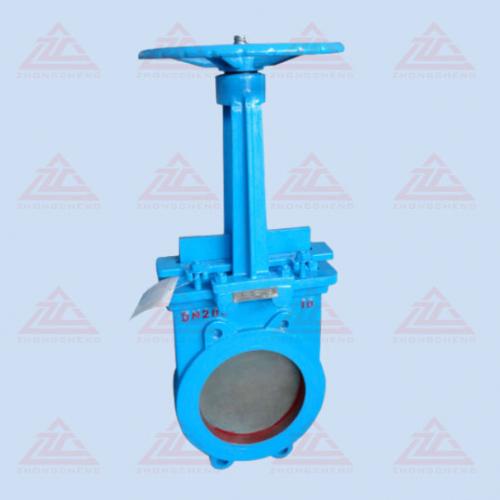

PZ73X 2”-24” Cast Iron Knife Gate Valve Description

Cast IRONKNIFE GATE VALVE

Model:PZ73X  2”-24”

Solid One Piece Cast Body, Replacement seat,  rising stem,
Designed & Tested to MFS

Operated type: Handwheel,gear

MATERIALS OF CONSTRUCTION

Body:Ductile iron GGG40,Cast Iron
Knife:SS304 as standard,,SS316 for option
Seat: EPDM ,NBR ,PTFE

COMMON APPLICATIONS

• Waste Water and Water
• Pulp & Paper
• Food
• Fly Ash Handling
• Sewage

Porduct Specificaion

The body  is casted as whole ,it is more relaxed to open , easier to replace the sealing ring , more convienent to maintain  than slurry back sealing is graphite or PTFE , The sealing is best .

The polishing treatment on the gate surface can enhance  the sealing and  prolong life-span of  packing and seat

Products are widely used in paper making, sugar, mining, metallurgy, chemical industry, electric power, water treatment, etc.
