Zhongcheng Valve Co.,Ltd was founded in 2003, main in producing and supplying products like Knife gate valve, Ceramic valve, Ball Valve and so on, our products are selled to USA, EUROPE, THAILAND and other markets.

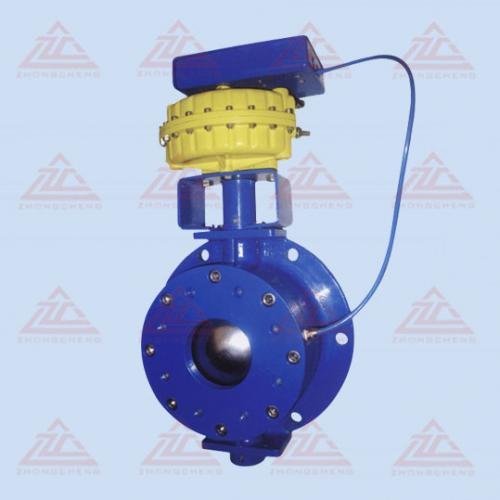

Dome valve

Dome valve
  • Model Number: YDF
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

YDF Dome valve Description

Structural Features

1 Its sealing surface adopt silicone rubber inflatable seal to guarantee zero leakage

2 The valve adopts double electromagnetic control and dedicated solenoid valve are used for control of both actions

Working Principle

When the valve is close , the dedicated solenoid valve for the pneumatic actuator will act ;the pneumatic actuator will drive the  ball to  rotate to the closing position through the valve stem , triggering the changeover push  rod ;and then the gasket ring will be inflated to compress the ball surface to produce a seal .When the  valve is open , the dedicated solenoid valve for the  gasket ring will exhaust rapidly and disengage itself from the ball surface to a free state ; then the dedicated solenoid for the pneumatic actuator will act ,and the cylinder will drive the  ball to rotate to open position

Main Material and parts


No



Name



Material:



Item



Name



Material





1



Body



WCB



6



Body



WCB





2



Stem



1Cr13



7



Spacer Ring



F6a





3



Ball



WCB+HCr



8



Swing Bar



Q235





4



Stem



1Cr13



9



Yoke



Q235





5



Sealing Seat



Fluorine Rubber



10



Pneumatic



Assembly




Application Specification


Design &Manufacture



GB/T12224





Connection Enddimension



Structure



Manufacture’s Standard





Flange Dimension



Manufacture’s Standard





Test & Inspect



GB/T 9092





Material



Carbon Steel



GB /T 12229





Stainless steel



GB/T12230





Mark



GB/T 12220





Supply



GB/T 12252




Installation ,Use and Maintenance

1 Before installation , it is necessary to clean the valve and remove possible defects caused in the transportation process .

2. Check carefully whether marks and the name plate on the valve meet operating requirements

3 . Note the flow direct indicated on the valve body in installation .

4.This valve shall be fully open or fully closed in running and not be used as throttle valve

5.For long-term storge ,it shall be stored in a dry and ventilated room with periodic check  to avoid rust

6, Knocking shall be avoid in the transportation process
