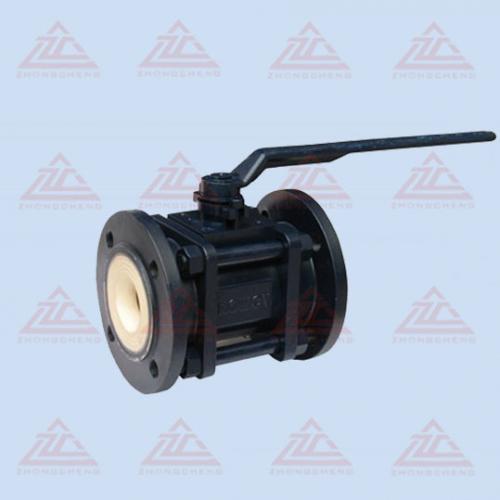

Manual Ceramic ball Valve

Manual Ceramic ball Valve
  • Model Number: Q41TC-150LB
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q41TC-150LB Manual Ceramic ball Valve Description

PRODUCT DETAILS:


Characteristics

This valve  is application as on-off or pipelines with high-hardness grains or wwith both soft grns and corrosive medium .Its nominal pressure  is 1.6Mpa ,and applicable temperature ≤200℃ 。And air supply pressure 0.6-0.8 Mpa .All mediumcontacting parts are made of structure ceramic ,featuring extremely high chemical stability and hardness(Rockwell Hardness HRC90 0),Only next to diamond .Therefor ,this valve  has  extremely strong resistance to abrasion ,corrosion and erosion ,good heat insulation and small thermal expansion the ball body is made with advanced grinding equipment and process with high–precision ball roundness and good surface quality ,and after facing –up with the valve seat ,a good seal ability can be obtained by means og self-lubrication of Zr02CERAMIC .thanks to the ceramic’s strong resistance to abrasion ,this valves is durable and extremely reliable with a long service life being 2-4 times of that Ti alloy and Monel  valves

Manual ceramic ball valve


Item



Name



Material



Item



Name



Material





1



Side valve cover



WCB



12



Hex Nut



8





2



Middle body



WCB



13



Equal-length stud



outsourcing





3



Middle body sleeve



Engineering ceramic



14



Packing gland



WCB





4



o-ring



Fluorine rubber



15



spacer



Q 235white zinc plating







5



Flange sleeve



Engineering ceramic



16



Circlip for shaft



65Mn





6



ball



Engineering ceramic



17



Handle



outsourcing





7



o-ring



Fluorine rubber



18



Gasket



Q235





8



Dish spring



50CrVA



19



Socke head cap screw



35#





9



washer



304



20



Hex bolts



B7





10



stem



2Cr13



21



Big Washer



PTFE





11



packing



PTFE



22



seat




Application specification


Design and manufacture



CB/T12224





Connection end dimension



Structural length



Manufacturer’s standard





Flange dimension



JB/T 79.1





Inspection and test



GB/T 9092





Material



Carbon steel



GB/T 12229





Stainless steel



GB/T 12230





Mark



GB/T 12220





Supply



GB/T 12252
