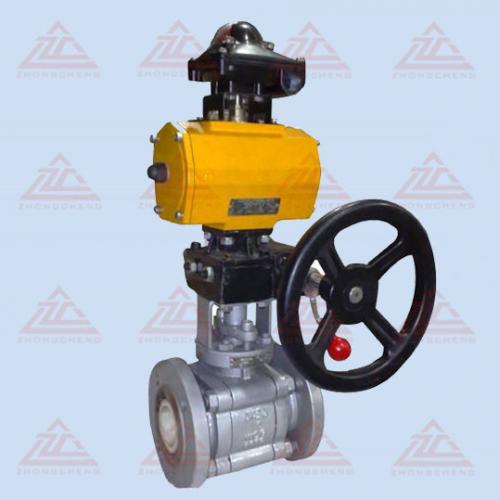

Pneumatic- Manual Ceramic Ball valve

Pneumatic- Manual Ceramic Ball valve
  • Model Number: q65941tc-150lb
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

q65941tc-150lb Pneumatic- Manual Ceramic Ball valve Description

Characteristics

This valve  is application as on-off or pipelines with high-hardness grains or wwith both soft grns and corrosive medium .Its nominal pressure  is 1.6Mpa ,and applicable temperature ≤200℃ 。And air supply pressure 0.6-0.8 Mpa .All mediumcontacting parts are made of structure ceramic ,featuring extremely high chemical stability and hardness(Rockwell Hardness HRC90 0),Only next to diamond .Therefor ,this valve  has  extremely strong resistance to abrasion ,corrosion and erosion ,good heat insulation and small thermal expansion the ball body is made with advanced grinding equipment and process with high–precision ball roundness and good surface quality ,and after facing –up with the valve seat ,a good seal ability can be obtained by means og self-lubrication of Zr02CERAMIC .thanks to the ceramic’s strong resistance to abrasion ,this valves is durable and extremely reliable with a long service life being 2-4 times of that Ti alloy and Monel  valves

Material for main Parts


Item



Name



Material



item



name



Material





1



Body



WCB



10



Stem



2Cr13





2



Mid-Body



WCB



11



Packing



35#





3



Middle Body Sleeve



Ind Ceramic



12



Hex nut



PTFE





4



Seat



Ind Ceramic



13



Equal–length Stud



2H





5



Flange Sleeve



Ind Ceramic



14



Packing Gland



WCB





6



Ball



17-4PH



15



Yoke



Q235





7



O ring



Fluorine Rubber



16



Pneumatic



Assemble





8



Spring



17-4PH



17



Cylinder



Assemble





9



Washer



.35#




Application Specification


Design & Manuafcture



GB/ T12224





Connection end dimension



Face to face



GB/T12221





Flange dimension



Gb/T9113.1





Inspect & Test



JB/T 9092





Material



Carbon Steel



GB/T 12229





Stainless Steel



GB/T12230





Mark



GB/T12220





Supply



GB/T12252
