Zhongcheng Valve Co.,Ltd was founded in 2003, main in producing and supplying products like Knife gate valve, Ceramic valve, Ball Valve and so on, our products are selled to USA, EUROPE, THAILAND and other markets.

Wafer knife gate valve

Wafer knife gate valve
  • Model Number: PZ673F/H 4”-24”
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

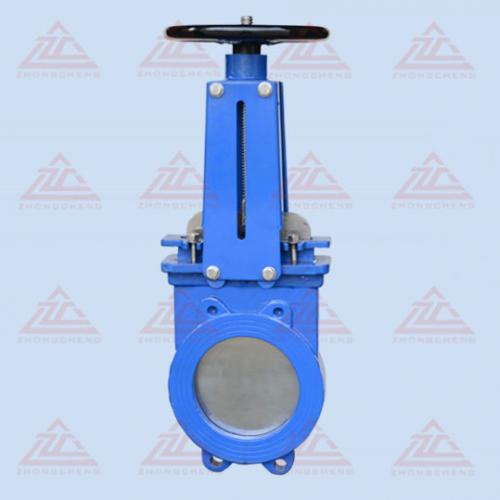

PZ673F/H 4”-24” Wafer knife gate valve Description

Wafer knife gate valve

PRODUCT DETAILS:

Lugged knife gate valve with  pneumatic

Model:PZ673F/H 4”-24”

Solid One Piece Cast Body, Replacement Seat ,Uni directional Type

Designed & Tested to MFS

Connection:Lugged

Operated type: .Handwheel

MATERIALS OF CONSTRUCTION

Body: Carbon steel ,Stainless Steel, Special materials

Knife:SS304,SS316(Solid solution treatment)

Stem :ANSI 1045+CR as standard,17-4PH for optional

Seat: EPDM as standard, NBR,PTFE

Connection:PN10

COMMON APPLICATIONS

• Waste Water and Water

• Pulp & Paper

• Food

• Fly Ash Handling

• Sewage
